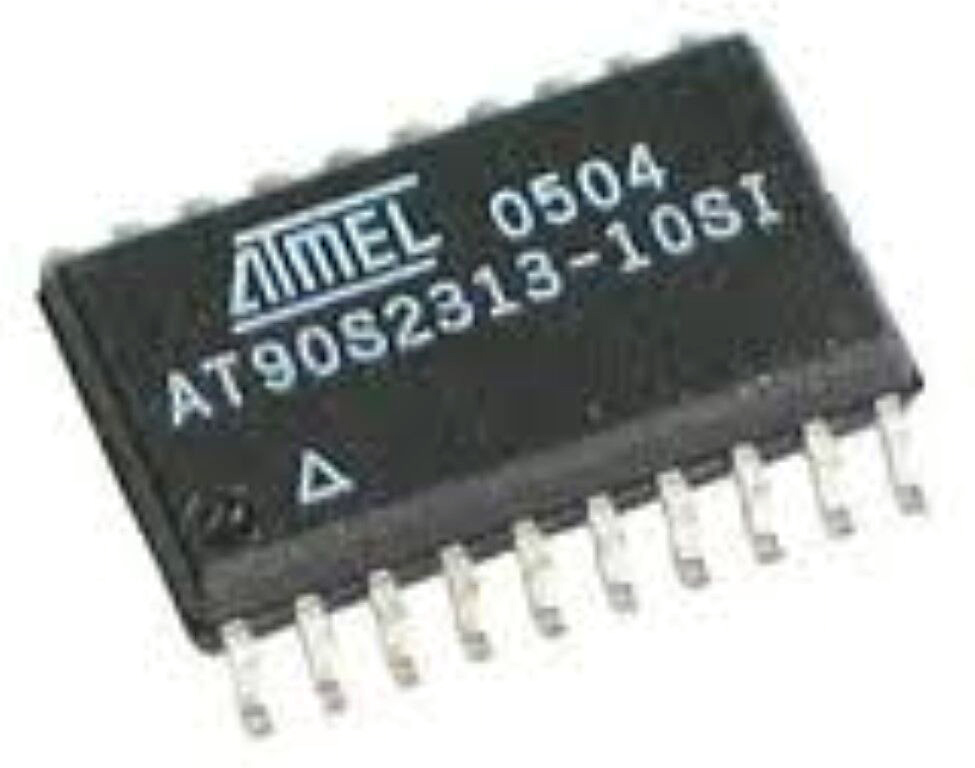

Atmel AT90S2313-10SI MCU

$5.49

+ Free Shipping

The Atmel AT90S2313-10SI is a high-performance 8-bit surface mount microcontroller with 2K bytes of in-system programmable flash memory. It features 20 programmable input/output lines, 32 general-purpose working registers, a programmable serial USART, and a powerful instruction set. This microcontroller is commonly used in industrial control systems, automotive applications, and home automation projects. Its compact size and low power consumption make it ideal for embedded applications where space and power are limited. In the event that an item is out of stock or back-ordered, we will automatically upgrade your order to a premium item at no additional cost.

SKU: AT90S231310PC-MC-1 Category:

The AT90S2313-10SI surface mount microcontroller, a member of the Atmel AVR family, boasts an advanced architecture and instruction set that enables high processing speeds, making it suitable for real-time applications requiring quick response times. The microcontroller features an 8-bit RISC architecture that reduces instruction set computing. Additionally, it features a high-performance on-chip oscillator that provides accurate timing and reduces the need for external components.

Atmel provides a range of software and hardware tools to help develop and debug applications based on the AT90S2313-10SI. The Atmel Studio IDE provides a user-friendly interface, while Atmel offers evaluation boards, programmers, and other development tools to streamline the development process.

The AT90S2313-10SI microcontroller is a versatile and powerful device designed for use in a variety of embedded applications. It is part of the Atmel AVR family and features a surface-mounted design, which allows it to be easily integrated into compact electronic systems.

In addition to its advanced architecture and instruction set, the AT90S2313-10SI features 2K bytes of in-system programmable flash memory, two 8-bit timers/counters, a programmable watchdog timer, and a built-in analog comparator. These peripherals provide a wide range of functions, including the ability to measure time intervals, generate signals with specific frequencies, compare analog signals, and generate interrupts based on predefined threshold values.

One of the key features of the AT90S2313-10SI is its 20 programmable input/output lines. These lines can be configured to interface with a wide range of external devices, including sensors, actuators, and displays. The microcontroller also features 32 general-purpose working registers, which provide fast and efficient data processing capabilities.

Practical uses for the AT90S2313-10SI microcontroller include industrial control systems, automotive applications, home automation projects, medical devices, and more. The microcontroller is capable of operating in harsh environments and can withstand high levels of shock and vibration. It is also designed to operate in a wide range of temperatures, making it suitable for use in extreme environments.

The AT90S2313-10SI microcontroller can operate at a clock speed of up to 10 MHz, which allows for fast execution of instructions and efficient data processing. Its low power consumption and power-down and sleep modes make it an ideal choice for battery-powered applications that require long battery life. Additionally, the microcontroller includes a programmable serial USART that enables communication with other devices, making it suitable for applications where data needs to be transmitted over long distances or in noisy environments.

The AT90S2313-10SI microcontroller includes 2K bytes of in-system programmable flash memory that can be programmed and reprogrammed up to 1000 times, providing ample space for program code and data storage. The microcontroller also features two 8-bit timers/counters that can be used to measure time intervals or generate signals with specific frequencies. A programmable watchdog timer acts as a safety net by resetting the microcontroller in the event of a program malfunction. Additionally, the built-in analog comparator can be used to compare analog signals and generate interrupts based on predefined threshold values.

The AT90S2313-10SI also includes a programmable serial USART, enabling communication with other devices. The microcontroller operates at a voltage range of 2.7V to 5.5V and features power-down and sleep modes to reduce power consumption when not in use.

With its compact size, low power consumption, and advanced architecture, the AT90S2313-10SI microcontroller is suitable for a wide range of embedded applications, from industrial control systems to home automation projects. Its high performance, low power consumption, and ample memory make it an efficient and reliable solution for designers and developers seeking to create cutting-edge embedded systems.

With its compact size, low power consumption, and advanced architecture, the AT90S2313-10SI microcontroller is an ideal solution for a variety of embedded applications. Its surface-mounted design allows it to be easily integrated into electronic systems, while its high performance and range of features make it a reliable and efficient choice for designers and developers.

Weight 2 oz
